 The above specifications are subject to change without prior notice for quality improvement.
A-Type
 Capacity  Weight  Min  Max  H  H1  Carrier
600 1200 928 1774 1535 1304 12~18
800 1560 961 1945 1647 1392 18~25
1000 1800 1198 2178 1863 1600 28~35
SOG 600
SOG 800
LT kg mm mm mm mm ton
SOG 1000
1500 2200 1376 2513 2081 1793 36~42
SOG 1500
Unit
 The above specifications are subject to change without prior notice for quality improvement.
B-Type
 Capacity  Weight  Min  Max  H  H1  Carrier
600 1050 849 1859 1850 1550 12~18
800 1300 969 1939 1970 1674 18~25
1000 1500 1192 2013 2203 1969 28~35
SOG 600
SOG 800
LT kg mm mm mm mm ton
SOG 1000
1500 1800 1315 2403 2381 2107 36~42
SOG 1500
2000 2100 1705 2699 2939 2673 43~47
SOG 2000
Unit
MAX
MAX
H
H
H1
H1
MIN
MIN
Tine-Type
Tine of the inner plate appearance separated
Open Type
Half-enclose Type
Enclose Type

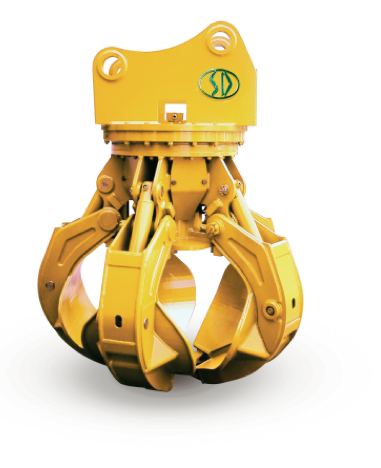

A-Type

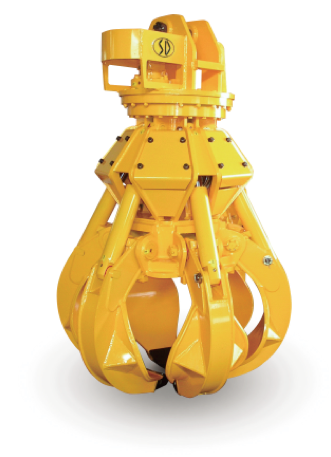

B-Type

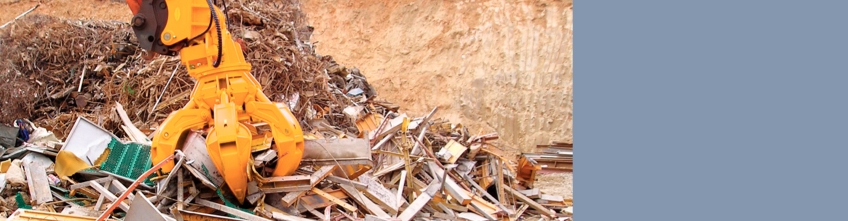

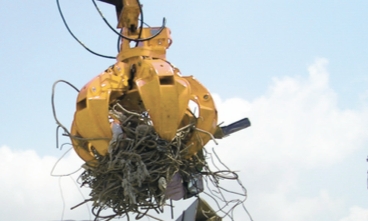

•Bulk scrap metal, and phage up get off work •Industry, environmental waste up get off work
► Feature
